In this tutorial, you will learn how to perform transfer learning with Keras, Deep Learning, and Python on your own custom datasets.
Imagine this:
You’re just hired by Yelp to work in their computer vision department.
Yelp has just launched a new feature on its website that allows reviewers to take photos of their food/dishes and then associate them with particular items on a restaurant’s menu.
It’s a neat feature…
…but they are getting a lot of unwanted image spam.
Certain nefarious users aren’t taking photos of their dishes…instead, they are taking photos of… (well, you can probably guess).
Your task?
Figure out how to create an automated computer vision application that can distinguish between “food” and “not food”, thereby allowing Yelp to continue with their new feature launch and provide value to their users.
So, how are you going to build such an application?
The answer lies in transfer learning via deep learning.
Today marks the start of a brand new set of tutorials on transfer learning using Keras. Transfer learning is the process of:
- Taking a network pre-trained on a dataset
- And utilizing it to recognize image/object categories it was not trained on
Essentially, we can utilize the robust, discriminative filters learned by state-of-the-art networks on challenging datasets (such as ImageNet or COCO), and then apply these networks to recognize objects the model was never trained on.
In general, there are two types of transfer learning in the context of deep learning:
- Transfer learning via feature extraction
- Transfer learning via fine-tuning
When performing feature extraction, we treat the pre-trained network as an arbitrary feature extractor, allowing the input image to propagate forward, stopping at pre-specified layer, and taking the outputs of that layer as our features.
Fine-tuning, on the other hand, requires that we update the model architecture itself by removing the previous fully-connected layer heads, providing new, freshly initialized ones, and then training the new FC layers to predict our input classes.
We’ll be covering both techniques in this series here on the PyImageSearch blog, but today we are going to focus on feature extraction.
To learn how to perform transfer learning via feature extraction with Keras, just keep reading!
Looking for the source code to this post?
Jump right to the downloads section.
Transfer learning with Keras and Deep Learning
Note: Many of the transfer learning concepts I’ll be covering in this series tutorials also appear in my book, Deep Learning for Computer Vision with Python. Inside the book, I go into much more detail (and include more of my tips, suggestions, and best practices). If you would like more detail on transfer learning after going through this guide, definitely take a look at my book.
In the first part of this tutorial, we will review two methods of transfer learning: feature extraction and fine-tuning.
I’ll then provide a detailed discussion of how to perform transfer learning via feature extraction (the primary focus of this tutorial).
From there, we’ll review Food-5k dataset, a dataset containing 5,000 images falling into two classes: “food” and “not-food”.
We’ll utilize transfer learning via feature extraction to recognize both of these classes in this tutorial.
Once we have a good handle on the dataset, we’ll start coding.
We’ll have a number of Python files to review, each accomplishing a specific step, including:
- Creating a configuration file.
- Building our dataset (i.e., putting the images in the proper directory structure).
- Extracting features from our input images using Keras and pre-trained CNNs.
- Training a Logistic Regression model on top of the extracted features.
Parts of the code we’ll be reviewing here today will also be utilized in the rest of the transfer learning series — if you intend on following along with the tutorials, take the time now to ensure you understand the code.
Two types of transfer learning: feature extraction and fine-tuning
Figure 1: Via “transfer learning”, we can utilize a pre-existing model such as one trained to classify dogs vs. cats. Using that pre-trained model we can break open the CNN and then apply “transfer learning” to another, completely different dataset (such as bears). We’ll learn how to apply transfer learning with Keras and deep learning in the rest of this blog post.
Note: The following section has been adapted from my book, Deep Learning for Computer Vision with Python. For the full set of chapters on transfer learning, please refer to the text.
Consider a traditional machine learning scenario where we are given two classification challenges.
In the first challenge, our goal is to train a Convolutional Neural Network to recognize dogs vs. cats in an image.
Then, in the second project, we are tasked with recognizing three separate species of bears: grizzly bears, polar bears, and giant pandas.
Using standard practices in machine learning/deep learning, we could treat these challenges as two separate problems:
- First, we would gather a sufficient labeled dataset of dogs and cats, followed by training a model on the dataset
- We would then repeat the process a second time, only this time, gathering images of our bear breeds, and then training a model on top of the labeled dataset.
Transfer learning proposes a different paradigm — what if we could utilize an existing pre-trained classifier as a starting point for a new classification, object detection, or instance segmentation task?
Using transfer learning in the context of the proposed challenges above, we would:
- First train a Convolutional Neural Network to recognize dogs versus cats
- Then, use the same CNN trained on the dog and cat data and use it to distinguish between the bear classes, even though no bear data was mixed with the dog and cat data during the initial training
Does this sound too good to be true?
It’s actually not.
Deep neural networks trained on large-scale datasets such as ImageNet and COCO have proven to be excellent at the task of transfer learning.
These networks learn a set of rich, discriminative features capable of recognizing 100s to 1,000s of object classes — it only makes sense that these filters can be reused for tasks other than what the CNN was originally trained on.
In general, there are two types of transfer learning when applied to deep learning for computer vision:
- Treating networks as arbitrary feature extractors.
- Removing the fully-connected layers of an existing network, placing a new set of FC layers on top of the CNN, and then fine-tuning these weights (and optionally previous layers) to recognize the new object classes.
In this blog post, we’ll focus primarily on the first method of transfer learning, treating networks as feature extractors.
We’ll discuss fine-tuning networks later in this series on transfer learning with deep learning.
Transfer learning via feature extraction

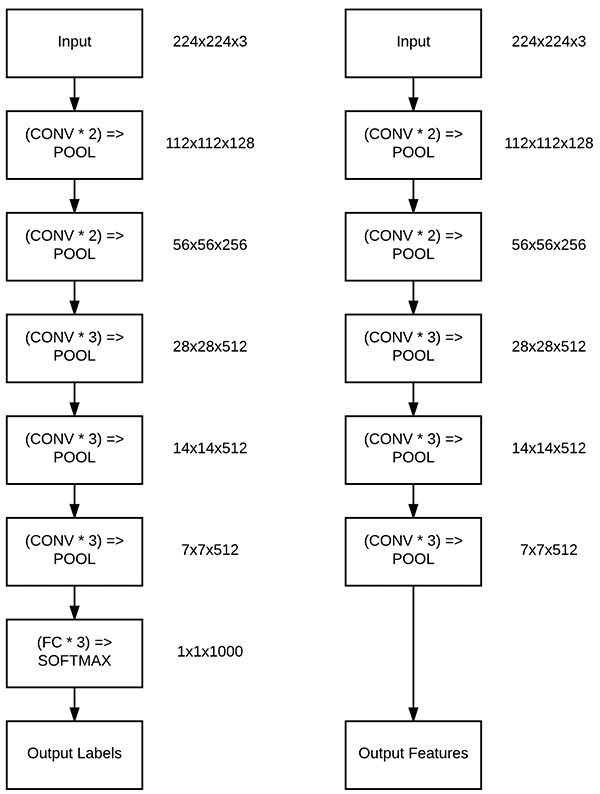

Figure 2: Left: The original VGG16 network architecture that outputs probabilities for each of the 1,000 ImageNet class labels. Right: Removing the FC layers from VGG16 and instead of returning the final POOL layer. This output will serve as our extracted features.
Note: The following section has been adapted from my book, Deep Learning for Computer Vision with Python. For the full set of chapters on feature extraction, please refer to the text.
Typically, you’ll treat a Convolutional Neural Network as an end-to-end image classifier:
- We input an image to the network.
- The image forward propagates through the network.
- We obtain our final classification probabilities at the end of the network.
However, there is no “rule” that says we must allow the image to forward propagate through the entire network.
Instead, we can:
- Stop propagation at an arbitrary, but pre-specified layer (such as an activation or pooling layer).
- Extract the values from the specified layer.
- Treat the values as a feature vector.
For example, let’s consider the VGG16 network by Simonyan and Zisserman in Figure 2 (left) at the top of this section.
Along with the layers in the network, I have also included the input and output volume shapes for each layer.
When treating networks a feature extractor, we essentially “chop off” the network at our pre-specified layer (typically prior to the fully-connected layers, but it really depends on your particular dataset).
If we were to stop propagation before the fully-connected layers in VGG16, the last layer in the network would become the max-pooling layer (Figure 2, right), which will have an output shape of 7 x 7 x 512. Flattening, this volume into a feature vector we would obtain a list of 7 x 7 x 512 = 25,088 values — this list of numbers serves as our feature vector used to quantify the input image.
We can then repeat the process for our entire dataset of images.
Given a total of N images in our network, our dataset would now be represented as a list of N vectors, each of 25,088-dim.
Once we have our feature vectors, we can train off-the-shelf machine learning models such as Linear SVM, Logistic Regression, Decision Trees, or Random Forests on top of these features to obtain a classifier that can recognize new classes of images.
That said, the two most common machine learning models you’ll see for transfer learning via feature extraction are:
- Logistic Regression
- Linear SVM
Why those two models?
First, keep in mind our feature extractor is a CNN.
CNN’s are non-linear models capable of learning non-linear features — we are assuming that the features learned by the CNN are already robust and discriminative.
The second, and perhaps arguably more important reason, is that our feature vectors tend to be very large and have high dimensionality.
We, therefore, need a fast model that can be trained on top of the features — linear models tend to be very fast to train.
For example, our dataset of 5,000 images, each represented by a feature vector of 25,088-dim, can be trained in a few seconds using a Logistic Regression model.
To wrap up this section, I want you to keep in mind that the CNN itself is not capable of recognizing these new classes.
Instead, we are using the CNN as an intermediary feature extractor.
The downstream machine learning classifier will take care of learning the underlying patterns of the features extracted from the CNN.
The Foods-5K dataset
Figure 3: We will apply transfer learning to the Foods-5K dataset using Python, Keras, and Deep Learning.
The dataset we’ll be using here today is the Food-5K dataset, curated by the Multimedia Signal Processing Group (MSPG) of the Swiss Federal Institute of Technology.
The dataset, as the name suggests, consists of 5,000 images, belonging to two classes:
- Food
- Non-food
Our goal of is to train a classifier such that we can distinguish between these two classes.
MSPG has provided us with pre-split training, validation, and testing splits. We’ll be using these splits both in this guide on transfer learning via extraction as well as the rest of our tutorials on feature extraction.
Downloading the Food-5K dataset
Go ahead and grab the zip associated with today’s “Downloads”.
Once you’ve download the source code, change directory into
transfer-learning-keras:
$ unzip transfer-learning-keras.zip $ cd transfer-learning-keras $ mkdir Food-5K $ cd Food-5K
In my experience, I’ve found that downloading the Food-11 dataset is unreliable.
Therefore I’m presenting two options to download the dataset:
Option 1: Use wget in your terminal
The wget application comes on Ubuntu and other Linux distros. On macOS, you must install it:
$ brew install wget
To download the Food-5K dataset, let’s use
wgetin our terminal:
$ wget --passive-ftp --ftp-user FoodImage@grebvm2.epfl.ch \ --ftp-password Cahc1moo ftp://tremplin.epfl.ch/Food-5K.zip
Note: At least on macOS, I’ve found that if the wget
command fails once, just run it again and then the download will start.
Option 2: Use FileZilla
FileZilla is a GUI application for FTP and SCP connections. You may download it for your OS here.
Once you’ve installed and launched the application, enter the credentials:
- Host: tremplin.epfl.ch
- Username: FoodImage@grebvm2.epfl.ch
- Password: Cahc1moo
You can then connect and download the file into the appropriate destination.
Figure 4: Downloading the Food-5K dataset with FileZilla.
The username and password combination were obtained from the official Food-5K dataset website. If the username/password combination stops working for you, check to see if the dataset curators changed the login credentials.
Once downloaded, we can go ahead and unzip the dataset:
$ unzip Food-5k.zip
Project structure
Now that we have today’s zip and the dataset, let’s inspect the entire project directory.
First, navigate back up to the project’s root:
$ cd ..
Then, use the
treecommand with arguments as shown:
$ tree --dirsfirst --filelimit 10 . ├── Food-5K │ ├── evaluation [1000 entries] │ ├── training [3000 entries] │ ├── validation [1000 entries] │ └── Food-5K.zip ├── dataset ├── output ├── pyimagesearch │ ├── __init__.py │ └── config.py ├── build_dataset.py ├── extract_features.py └── train.py 7 directories, 6 files
As you can see, the
Food-5K/contains
evaluation/,
training/, and
validation/sub-directories. Each sub-directory contains 1,000
.jpgimage files.
Our
dataset/directory, while empty now, will soon contain the Food-5K images in a more organized form (to be discussed in the section, “Building our dataset for feature extraction”).
Upon successfully executing today’s Python scripts, the
output/directory will house our extracted features (stored in three separate
.csvfiles) as well as our label encoder and model (both of which are in
.cpickleformat).
Our Python scripts include:
pyimagesearch/config.py
: Our custom configuration file will help us manage our dataset, class names, and paths. It is written in Python directly so that we can useos.path
to build OS-specific formatted file paths directly in the script.build_dataset.py
: Using the configuration, this script will create an organized dataset on disk, making it easy to extract features from.extract_features.py
: The transfer learning magic begins here. This Python script will use a pre-trained CNN to extract raw features, storing the results in a.csv
file. The label encoder.cpickle
file will also be output via this script.train.py
: Our training script will train a Logistic Regression model on top of the previously computed features. We will evaluate and save the resulting model as a.cpickle
.
The
config.pyand
build_dataset.pyscripts will be re-used in the rest of the series on transfer learning so make sure you pay close attention to them!
Our configuration file
Let’s get started by reviewing our configuration file.
Open up
config.pyin the
pyimagesearchsubmodule and insert the following code:
# import the necessary packages import os # initialize the path to the *original* input directory of images ORIG_INPUT_DATASET = "Food-5K" # initialize the base path to the *new* directory that will contain # our images after computing the training and testing split BASE_PATH = "dataset"
We begin with a single import. We’ll use the
osmodule (Line 2) in this config to concatenate paths properly.
The
ORIG_INPUT_DATASETis the path to the original input dataset (i.e., where you downloaded and unarchived the Food-5K dataset).
The next path,
BASE_PATH, will be where our dataset is organized (the result of executing
build_dataset.py.
Note: The directory structure is not especially useful for this particular post, but it will be later in the series once we get to fine-tuning. Again, I consider organizing datasets in this manner a “best practice” for reasons you’ll see in this series.
Let’s specify more dataset configs as well as our class labels and batch size:
# define the names of the training, testing, and validation # directories TRAIN = "training" TEST = "evaluation" VAL = "validation" # initialize the list of class label names CLASSES = ["non_food", "food"] # set the batch size BATCH_SIZE = 32
The path to output training, evaluation, and validation directories is specified on Lines 13-15.
The
CLASSESare specified in list form on Line 18. As previously mentioned, we’ll be working with
"food"and
"non_food"images.
When extracting features, we’ll break our data into bite-sized chunks called batches. The
BATCH_SIZEis specified on Line 21.
Finally, we can build the rest of our paths:
# initialize the label encoder file path and the output directory to # where the extracted features (in CSV file format) will be stored LE_PATH = os.path.sep.join(["output", "le.cpickle"]) BASE_CSV_PATH = "output" # set the path to the serialized model after training MODEL_PATH = os.path.sep.join(["output", "model.cpickle"])
Our label encoder path is concatenated on Line 25 where the result of joining the paths is
output/le.cpickleon Linux/Mac or
output\le.cpickleon Windows.
The extracted features will live in a CSV file in the path specified in
BASE_CSV_PATH.
Lastly, we assemble the path to our exported model file in
MODEL_PATH.
Building our dataset for feature extraction
Before we can extract features from our set of input images, let’s take the time to organize our images on disk.
I prefer to have my dataset on disk organized in the format of:
dataset_name/class_label/example_of_class_label.jpg
Maintaining this directory structure:
- Not only keeps our dataset organized on disk…
- …but also enables us to utilize Keras’
flow_from_directory
function when we get to fine-tuning later in this series of tutorials.
Since the Food-5K dataset also provides pre-supplied data splits, our final directory structure will have the form:
dataset_name/split_name/class_label/example_of_class_label.jpg
Let’s go ahead and build our dataset + directory structure now.
Open up the
build_dataset.pyfile and insert the following code:
# import the necessary packages
from pyimagesearch import config
from imutils import paths
import shutil
import os
# loop over the data splits
for split in (config.TRAIN, config.TEST, config.VAL):
# grab all image paths in the current split
print("[INFO] processing '{} split'...".format(split))
p = os.path.sep.join([config.ORIG_INPUT_DATASET, split])
imagePaths = list(paths.list_images(p))Our packages are imported on Lines 2-5. We’ll use our
config(Line 2) throughout this script to recall our settings. The other three imports —
paths,
shutil, and
os— will allow us to traverse directories, create folders, and copy files.
On Line 8 we begin looping over our training, testing, and validation splits.
Lines 11 and 12 create a list of all
imagePathsin the split.
From there we’ll go ahead and loop over the
imagePaths:
# loop over the image paths
for imagePath in imagePaths:
# extract class label from the filename
filename = imagePath.split(os.path.sep)[-1]
label = config.CLASSES[int(filename.split("_")[0])]
# construct the path to the output directory
dirPath = os.path.sep.join([config.BASE_PATH, split, label])
# if the output directory does not exist, create it
if not os.path.exists(dirPath):
os.makedirs(dirPath)
# construct the path to the output image file and copy it
p = os.path.sep.join([dirPath, filename])
shutil.copy2(imagePath, p)For each
imagePathin the split, we proceed to:
- Extract the class
label
from the filename (Lines 17 and 18). - Construct the path to the output directory based on the
BASE_PATH
,split
, andlabel
(Line 21). - Create
dirPath
(if necessary) via Lines 24 and 25. - Copy the image into the destination path (Lines 28 and 29).
Now that
build_dataset.pyhas been coded, use the “Downloads” section of the tutorial to download an archive of the source code.
You can then execute
build_dataset.pyusing the following command:
$ python build_dataset.py [INFO] processing 'training split'... [INFO] processing 'evaluation split'... [INFO] processing 'validation split'...
Here you can see that our script executed successfully.
To verify your directory structure on disk, use the
lscommand:
$ ls dataset/ evaluation training validation
Inside the dataset directory, we have our training, evaluation, and validation splits.
And inside each of those directories, we have class labels directories:
$ ls dataset/training/ food non_food
Extracting features from our dataset using Keras and pre-trained CNNs
Let’s move on to the actual feature extraction component of transfer learning.
All code used for feature extraction using a pre-trained CNN will live inside
extract_features.py— open up that file and insert the following code:
# import the necessary packages
from sklearn.preprocessing import LabelEncoder
from keras.applications import VGG16
from keras.applications import imagenet_utils
from keras.preprocessing.image import img_to_array
from keras.preprocessing.image import load_img
from pyimagesearch import config
from imutils import paths
import numpy as np
import pickle
import random
import os
# load the VGG16 network and initialize the label encoder
print("[INFO] loading network...")
model = VGG16(weights="imagenet", include_top=False)
le = NoneOn Lines 2-12, all the packages necessary for extracting features are imported. Most notably this includes
VGG16.
VGG16 is the convolutional neural network (CNN) we are using for transfer learning (Line 3).
On Line 16, we load the
modelwhile specifying two parameters:
weights="imagenet"
: Pre-trained ImageNet weights are loaded for transfer learning.include_top=False
: We do not include the fully-connected head with the softmax classifier. In other words, we chop off the head of the network.
With weights dialed in and by loading our model without the head, we are now ready for transfer learning. We will use the output values of the network directly, storing the results as feature vectors.
Finally, our label encoder is initialized on Line 17.
Let’s loop over our data splits:
# loop over the data splits
for split in (config.TRAIN, config.TEST, config.VAL):
# grab all image paths in the current split
print("[INFO] processing '{} split'...".format(split))
p = os.path.sep.join([config.BASE_PATH, split])
imagePaths = list(paths.list_images(p))
# randomly shuffle the image paths and then extract the class
# labels from the file paths
random.shuffle(imagePaths)
labels = [p.split(os.path.sep)[-2] for p in imagePaths]
# if the label encoder is None, create it
if le is None:
le = LabelEncoder()
le.fit(labels)
# open the output CSV file for writing
csvPath = os.path.sep.join([config.BASE_CSV_PATH,
"{}.csv".format(split)])
csv = open(csvPath, "w")Looping over each
split(training, testing, and validation) begins on Line 20.
First, we grab all
imagePathsfor the
split(Lines 23 and 24).
Paths are randomly shuffled via Line 28, and from there, our class
labelsare extracted from the paths themselves (Line 29).
If necessary, our label encoder is instantiated and fitted (Lines 32-34), ensuring we can convert the string class labels to integers.
Next, we construct the path to output our CSV files (Lines 37-39). We will have three CSV files — one for each data split. Each CSV will have N number of rows — one for each of the images in the data split.
The next step is to loop over our
imagePathsin
BATCH_SIZEchunks:
# loop over the images in batches
for (b, i) in enumerate(range(0, len(imagePaths), config.BATCH_SIZE)):
# extract the batch of images and labels, then initialize the
# list of actual images that will be passed through the network
# for feature extraction
print("[INFO] processing batch {}/{}".format(b + 1,
int(np.ceil(len(imagePaths) / float(config.BATCH_SIZE)))))
batchPaths = imagePaths[i:i + config.BATCH_SIZE]
batchLabels = le.transform(labels[i:i + config.BATCH_SIZE])
batchImages = []To create our batches of
imagePaths, we use Python’s
rangefunction. The function accepts three parameters:
start,
stop, and
step. You can read more about
rangein this detailed explanation.
Our batches will step through the entire list of
imagePaths. The
stepis our batch size (
32unless you adjust it in the configuration settings).
On Lines 48 and 49 the current batch of image paths and labels are extracted using array slicing. Our
batchImageslist is then initialized on Line 50.
Let’s go ahead and populate our
batchImagesnow:
# loop over the images and labels in the current batch for imagePath in batchPaths: # load the input image using the Keras helper utility # while ensuring the image is resized to 224x224 pixels image = load_img(imagePath, target_size=(224, 224)) image = img_to_array(image) # preprocess the image by (1) expanding the dimensions and # (2) subtracting the mean RGB pixel intensity from the # ImageNet dataset image = np.expand_dims(image, axis=0) image = imagenet_utils.preprocess_input(image) # add the image to the batch batchImages.append(image)
Looping over
batchPaths(Line 53), we will load each
image, preprocess it, and gather it into
batchImages.
The
imageitself is loaded on Line 56.
Preprocessing includes:
- Resizing to 224×224 pixels via the
target_size
parameter on Line 56. - Converting to array format (Line 57).
- Adding a batch dimension (Line 62).
- Mean subtraction (Line 63).
If these preprocessing steps appear foreign, please refer to Deep Learning for Computer Vision with Python.
Finally, the
imageis added to the batch via Line 66.
Now we will pass the batch of images through our network to extract features:
# pass the images through the network and use the outputs as # our actual features, then reshape the features into a # flattened volume batchImages = np.vstack(batchImages) features = model.predict(batchImages, batch_size=config.BATCH_SIZE) features = features.reshape((features.shape[0], 7 * 7 * 512))
Our batch of images is sent through the network via Lines 71 and 72.
Keep in mind that we have removed the fully-connected layer head of the network. Instead, the forward propagation stops at the max-pooling layer. We will treat the output of the max-pooling layer as a list of
features, also known as a “feature vector”.
The output dimension of the max-pooling layer is (batch_size, 7 x 7 x 512). We can thus
reshapethe
featuresinto a NumPy array of shape
(batch_size, 7 * 7 * 512), treating the output of the CNN as a feature vector.
Let’s wrap up this script:
# loop over the class labels and extracted features
for (label, vec) in zip(batchLabels, features):
# construct a row that exists of the class label and
# extracted features
vec = ",".join([str(v) for v in vec])
csv.write("{},{}\n".format(label, vec))
# close the CSV file
csv.close()
# serialize the label encoder to disk
f = open(config.LE_PATH, "wb")
f.write(pickle.dumps(le))
f.close()Maintaining our batch efficiency, the
featuresand associated class labels are written to our CSV file (Lines 76-80).
Inside the CSV file, the class
labelis the first field in each row (enabling us to easily extract it from the row during training). The feature
vecfollows.
Each CSV file will be closed via Line 83. Recall that upon completion we will have one CSV file per data split.
Finally, we can dump the label encoder to disk (Lines 86-88).
Let’s go ahead and extract features from our dataset using the VGG16 network pre-trained on ImageNet.
Use the “Downloads” section of this tutorial to download the source code, and from there, execute the following command:
$ python extract_features.py [INFO] loading network... [INFO] processing 'training split'... ... [INFO] processing batch 92/94 [INFO] processing batch 93/94 [INFO] processing batch 94/94 [INFO] processing 'evaluation split'... ... [INFO] processing batch 30/32 [INFO] processing batch 31/32 [INFO] processing batch 32/32 [INFO] processing 'validation split'... ... [INFO] processing batch 30/32 [INFO] processing batch 31/32 [INFO] processing batch 32/32
On an NVIDIA K80 GPU it took 2m55s to extract features from the 5,000 images in the Food-5K dataset.
You can use a CPU instead, but it will take quite a bit longer.
Implementing our training script
The final step for transfer learning via feature extraction is to implement a Python script that will take our extracted features from the CNN and then train a Logistic Regression model on top of the features.
Again, keep in mind that our CNN did not predict anything! Instead, the CNN was treated as an arbitrary feature extractor.
We inputted an image to the network, it was forward propagated, and then we extracted the layer outputs from the max-pooling layer — these outputs serve as our feature vectors.
To see how we can train a model on these feature vectors, open up the
train.pyfile and let’s get to work:
# import the necessary packages
from sklearn.linear_model import LogisticRegression
from sklearn.metrics import classification_report
from pyimagesearch import config
import numpy as np
import pickle
import os
def load_data_split(splitPath):
# initialize the data and labels
data = []
labels = []
# loop over the rows in the data split file
for row in open(splitPath):
# extract the class label and features from the row
row = row.strip().split(",")
label = row[0]
features = np.array(row[1:], dtype="float")
# update the data and label lists
data.append(features)
labels.append(label)
# convert the data and labels to NumPy arrays
data = np.array(data)
labels = np.array(labels)
# return a tuple of the data and labels
return (data, labels)On Lines 2-7 we import our required packages. Notably, we’ll use
LogisticRegressionas our machine learning classifier. Fewer imports are required for our training script as compared to extracting features. This is partly because the training script itself is actually simpler.
Let’s define a function named
load_data_spliton Line 9. This function is responsible for loading all data and labels given the path of a data split CSV file (the
splitPathparameter).
Inside the function, we start by initializing, our
dataand
labelslists (Lines 11 and 12).
From there we open the CSV and loop over all rows beginning on Line 15. In the loop, we:
- Load all comma separated values from the
row
into a list (Line 17). - Grab the class
label
via Line 18 (it is the first value in the list). - Extract all
features
from the row (Line 19). These are all values in the list except the class label. The result is our feature vector. - From there, we append the feature vector and
label
to thedata
andlabels
lists respectively (Lines 22 and 23).
Finally, the
dataand
labelsare returned to the calling function (Line 30).
With the
load_data_spitfunction ready to go, let’s put it to work by loading our data:
# derive the paths to the training and testing CSV files
trainingPath = os.path.sep.join([config.BASE_CSV_PATH,
"{}.csv".format(config.TRAIN)])
testingPath = os.path.sep.join([config.BASE_CSV_PATH,
"{}.csv".format(config.TEST)])
# load the data from disk
print("[INFO] loading data...")
(trainX, trainY) = load_data_split(trainingPath)
(testX, testY) = load_data_split(testingPath)
# load the label encoder from disk
le = pickle.loads(open(config.LE_PATH, "rb").read())Lines 33-41 load our training and testing feature data from disk. We’re using our function from the previous code block to handle the loading process.
Line 44 loads our label encoder.
With our data in memory, we’re now ready to train our machine learning classifier:
# train the model
print("[INFO] training model...")
model = LogisticRegression(solver="lbfgs", multi_class="auto")
model.fit(trainX, trainY)
# evaluate the model
print("[INFO] evaluating...")
preds = model.predict(testX)
print(classification_report(testY, preds, target_names=le.classes_))
# serialize the model to disk
print("[INFO] saving model...")
f = open(config.MODEL_PATH, "wb")
f.write(pickle.dumps(model))
f.close()Lines 48 and 49 are responsible for initializing and training our Logistic Regression
model.
Note: To learn more about Logistic Regression and other machine learning algorithms in detail, be sure to refer to PyImageSearch Gurus, my flagship computer vision course and community.
Lines 53 and 54 facilitate evaluating the
modelon the testing set and printing classification statistics in the terminal.
Finally, the
modelis output in Python’s pickle format (Lines 58-60).
That’s a wrap for our training script! As you’ve learned, writing code for training a Logistic Regression model on top of feature data is very straightforward. In the next section, we will run the training script.
If you are wondering how we would handle so much feature data that it can’t fit into memory all at once, stay tuned for next week’s tutorial.
Note: This tutorial is long enough as is, so I haven’t covered how to tune the hyperparameters to the Logistic Regression model, something I definitely recommend doing to ensure to obtain the highest accuracy possible. If you’re interested in learning more about transfer learning, and how to tune hyperparameters, during feature extraction, be sure to refer to Deep Learning for Computer Vision with Python where I cover the techniques in more detail.
Training a model on the extracted features
At this point, we are ready to perform the final step on transfer learning via feature extraction with Keras.
Let’s briefly review what we have done so far:
- Downloaded the Food-5K dataset (5,000 images belonging to two classes, “food” and “non-food”, respectively).
- Restructured the original directory structure of the dataset in a format more suitable for transfer learning (in particular, fine-tuning which we’ll be covering later in this series).
- Extracted features from the images using VGG16 pre-trained on ImageNet.
And now, we’re going to train a Logistic Regression model on top of these extracted features.
Again, keep in mind that VGG16 was not trained to recognize the “food” versus “non-food” classes. Instead, it was trained to recognize 1,000 ImageNet classes.
But, by leveraging:
- Feature extraction with VGG16
- And applying a Logistic Regression classifier on top of those extracted features
…we will be able to recognize the new classes, even though VGG16 was never trained to recognize them!
Go ahead and use the “Downloads” section of this tutorial to download the source code to this guide.
From there, open up a terminal and execute the following command:
$ python train.py
[INFO] loading data...
[INFO] training model...
[INFO] evaluating...
precision recall f1-score support
food 0.99 0.98 0.98 500
non_food 0.98 0.99 0.99 500
micro avg 0.98 0.98 0.98 1000
macro avg 0.99 0.98 0.98 1000
weighted avg 0.99 0.98 0.98 1000
[INFO] saving model...Training on my machine took only 27 seconds, and as you can see from our output, we are obtaining 98-99% accuracy on the testing set!
When should I use transfer learning and feature extraction?
Transfer learning via feature extraction is often one of the easiest methods to obtain a baseline accuracy in your own projects.
Whenever I am confronted with a new deep learning project, I often throw feature extraction with Keras at it just to see what happens:
- In some cases, the accuracy is sufficient.
- In others, it requires me to tune the hyperparameters to my Logistic Regression model or try another pre-trained CNN.
- And in other situations, I need to explore fine-tuning or even training from scratch with a custom CNN architecture.
Regardless, in the best case transfer learning via feature extraction gives me good accuracy and the project can be completed.
And in the worst case I’ll gain a baseline to beat with my future experiments.
What’s next — where do I learn more about transfer learning and feature extraction?
In this tutorial, you learned how to perform transfer learning via feature extraction and then train a model on top of the extracted features.
But I know as soon as this post is published I’m going to receive emails and questions in the comments regarding:
- “How do I classify images outside my training/testing set?”
- “How do I load an image from disk, extract features from it using a CNN, and then classify it using the Logistic Regression model?”
- “How do I correctly preprocess my input image before classification?”
Today’s tutorial is long enough as it is. I can’t include those sections of Deep Learning for Computer Vision with Python inside this post.
If you’d like to learn more about transfer learning, including:
- More details on the concept of transfer learning
- How to perform feature extraction
- How to fine-tune networks
- How to classify images outside your training/testing set using both feature extraction and fine-tuning
…then you’ll definitely want to refer to Deep Learning for Computer Vision with Python.
Besides chapters on transfer learning, you’ll also find:
- Super practical walkthroughs that present solutions to actual, real-world image classification, object detection, and instance segmentation problems.
- Hands-on tutorials (with lots of code) that not only show you the algorithms behind deep learning for computer vision but their implementations as well.
- A no-nonsense teaching style that is guaranteed to help you master deep learning for image understanding and visual recognition.
To learn more about the book, and grab the table of contents + free sample chapters, just click here!
Summary
Today marked the start of our series on transfer learning with Keras and Deep Learning.
The two primary forms of feature extraction via deep learning are:
- Feature extraction
- Fine-tuning
The focus of today’s tutorial was on feature extraction, the process of treating a pre-trained network as an arbitrary feature extractor.
The steps to perform transfer learning via feature extraction include:
- Starting with a pre-trained network (typically on a dataset such as ImageNet or COCO; large enough for the model to learn discriminative filters).
- Allowing an input image to forward propagate to an arbitrary (pre-specified) layer.
- Taking the output of that layer and treating it as a feature vector.
- Training a “standard” machine learning model on the dataset of extracted features.
The benefit of performing transfer learning via feature extraction is that we do not need to train (or re-train) our neural network.
Instead, the network serves as a black box feature extractor.
Those extracted features, which are assumed to be non-linear in nature (since they were extracted from a CNN), are then passed into a linear model for classification.
If you’re interested in learning more about transfer learning, feature extraction, and fine-tuning, be sure to refer to my book, Deep Learning for Computer Vision with Python where I cover the topic in more detail.
I hope you enjoyed today’s post! Stay tuned for next week when we discuss how to work with feature extraction when our dataset is too large too fit into memory.
To download the source code to this post (and be notified when future tutorials are published here on PyImageSearch), just enter your email address in the form below!
Downloads:
The post Transfer Learning with Keras and Deep Learning appeared first on PyImageSearch.
